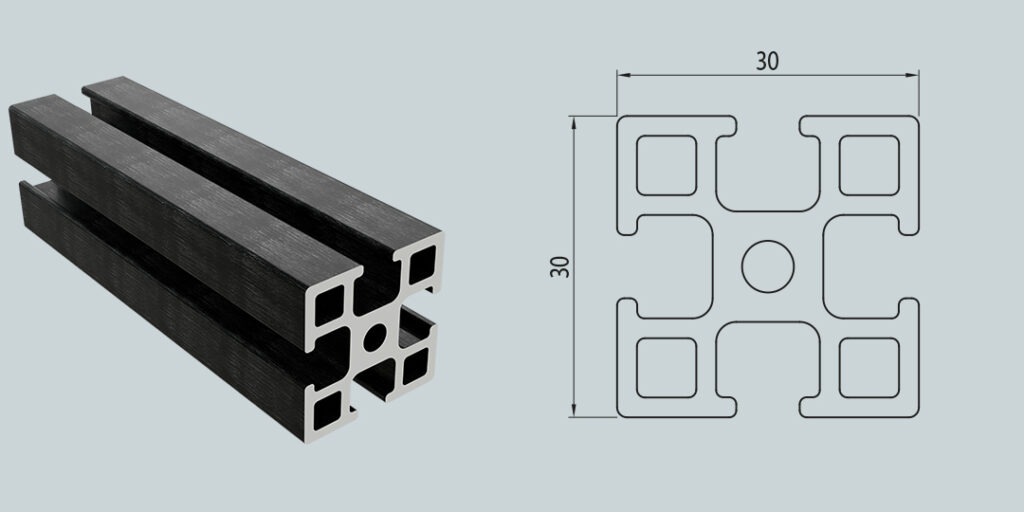

The C6 line expands its range with the introduction of the new 30×30 profile, the most compact member of the family. Made from carbon fiber composite, it retains all the distinctive features of the larger profiles while reducing overall dimensions and enabling new applications that were previously difficult to achieve.
Weighing just 0.66 kg/m, compared to 0.78 kg/m for the equivalent aluminum profile, the new 30×30 profile helps improve dynamic performance and reduce energy consumption in structures and machinery where every gram makes a difference.
The carbon fiber profile 115.100.001 represents a further step by Alusic toward resource optimization, system efficiency, and the creation of increasingly advanced and sustainable working environments.
Even Lighter and More Compact, Yet Exceptionally Strong
Alusic’s C6 carbon fiber profiles deliver outstanding performance and uncompromising versatility, thanks to excellent dimensional stability, a superior stiffness-to-weight ratio, and outstanding resistance to chemical corrosion. In addition, they maintain their properties across a wide temperature range, from -50°C to +50°C.
All these advantages have also been incorporated into the new 30×30 profile, which offers a viable alternative to aluminum even in the most compact applications and confined spaces. Lightweight, rigid, and reliable, it combines high performance with optimized dimensions, providing an effective solution wherever space and weight are critical factors.
Looking to optimize your production line?
Discover the full range of Alusic carbon fiber profiles!
Codice: 115.100.001
lx cm4: 3,27
ly cm4: 3,27
wx cm3: 2,18
wy cm3: 2,18
mm2: 387,9
Kg/m: 0,66
